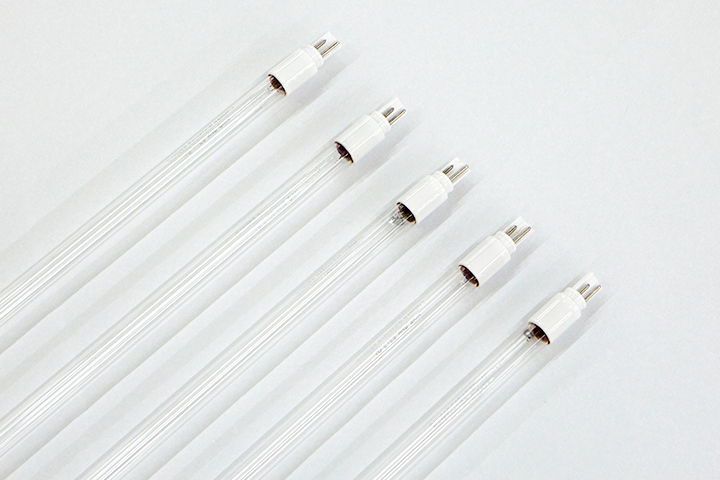

UV LAMP
DI＆WATER中的TOC去除和细菌杀菌，低压UV LAMP
特征
- 用于FPD（FLAT PANEL DISPLAY）工业，工程领域，制药领域，半导体和LCD等其他行业，1ppb单位的TOC（TORAL ORGANIC CARBON）的制造过程中的超纯水也在过程控制 它可以产生严重的影响。
- 用于去除TOC的UV灯用于超纯水以ppb单位分解有机物质。
UV LAMP分解有机键的独特键合环，通过化学反应等过程将其转化为CO 2和H 2 O，从而去除超纯水中含有的有机物质，单位为ppb或更少 被使用。
LINE UP
| Model No | Total Length | Arc Length | Power | Lamp Current | Life Time | Main Wave |
| (mm) | (mm) | (W) | (A) | (Hrs) | (nm) | |
| FNS-145W | 1593 | 1500 | 145 | 0.8 | 8500 | 185/254 |
| FNS-145W(N) | 1593 | 1480 | 145 | 0.8 | 8500 | 185/254 |
| FNS-7990W | 1566 | 1466 | 145 | 0.8 | 8500 | 185/254 |
| FNS-7330W | 1583 | 1470 | 75 | 0.425 | 8500 | 185/254 |
| FNS-17498 | 1568 | 1473 | 65 | 0.425 | 8500 | 185/254 |
| FNS-17998 | 1568 | 1473 | 65 | 0.425 | 8500 | 254 |
| FNS-17491 | 855 | 762 | 39 | 0.425 | 8500 | 254 |
| FNS-65W(O) | 1160 | 1160 | 65 | 0.425 | 8500 | 254 |
• Low Pressure Lamps - TOC LAMP
Features & Applications
- Low Pressure Hg Lamp for Organic Material elimination in DI water generation for Semiconductor and FPD Manufacturing Facilities
- Production of ultra-pure water
- Waste water disinfection
- Oxidation of harmful materials in water and air
- Ozone Generation
• Amalgam Lamp
Features & Applications
- extremely long life, high power
- unique coation
- insensitive to temperature fluctuations"
• Super Pure Water Treatment
Features & Applications
- organic matter decomposition system(TOC-UV)
This system decomposes and removes traces of organic matter contained in water utilizing the wavelength (185nm) of UV rays. The treated water's flow channel and chamber's configuration are optimally designed so that UV rays and irradiate effectively. Using this system, organic matter can be decomposed into organic acid or in organic carbonic acid.
This is auitable for treating a comparatively lower concentration of organic matter in the range of several ppb to several tens of ppb.
• Electronic Ballast
Features & Applications
- A series of electronic high frequency ballast matched to provide optimal performance with our lamps in a true systems approach.
This extensive line of ballast, covering the gamut of germicidal lamps, delivers all advantages of electronic High Frequency operation.
水中杀菌 UV LAMP
DI＆WATER中的TOC去除和细菌杀菌，低压UV LAMP
特征
- 高纯度石英管（Sio2 99.97％以上）通过使最有效的消毒功率253.7nm的紫外线透过灯而制成。
- 紫外线消毒可以有效地杀灭大多数微生物群体，如细菌，病毒，真菌。
- 利用紫外线的杀菌性能，用于食品，医药，水，医疗，化妆品，电子等各种领域的杀菌方法。
- 根据灯的长度，底座的形状，连接针的数量和配置以及灯的类型，灭菌器也会有所不同。
SPECIFICATION
| Model No | Lamp Watt | Total Length | Arc Length | Lamp Current | 254nm Output | Life Time |
| (W) | (mm) | (mm) | (A) | (㎼/㎠) | (Hours) | |
| G36T5 | 41 | 842 | 762 | 1, 4 Pin | 130 | 8,000 |
| G64T5 | 75 | 1,554 | 1,474 | 1, 4 Pin | 220t | 8,000 |
| G67T5 | 79 | 1,630 | 1,550 | 1, 4 Pin | 225 | 8,000 |
* 254 nm的测量距离：1 M
*可以生产除上述标准以外的产品。
*由于杀菌灯的紫外线对眼睛和皮肤有害，请不要直接用肉眼看到点亮的灯或触摸皮肤。
